Hydrosplit

Trident Titan Pro 20M‑HB

Indoor unit

3D
Betöltés...

Outdoor unit

3D
Betöltés...

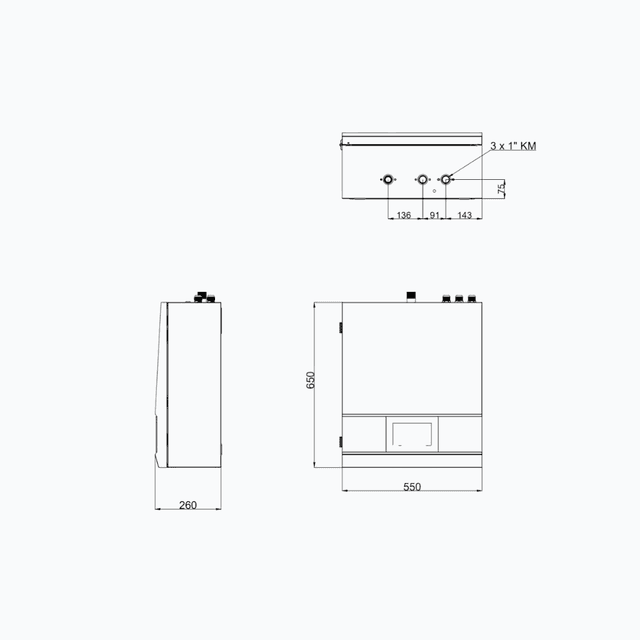

Trident Titan Pro 20M-HB - Indoor unit technical drawing

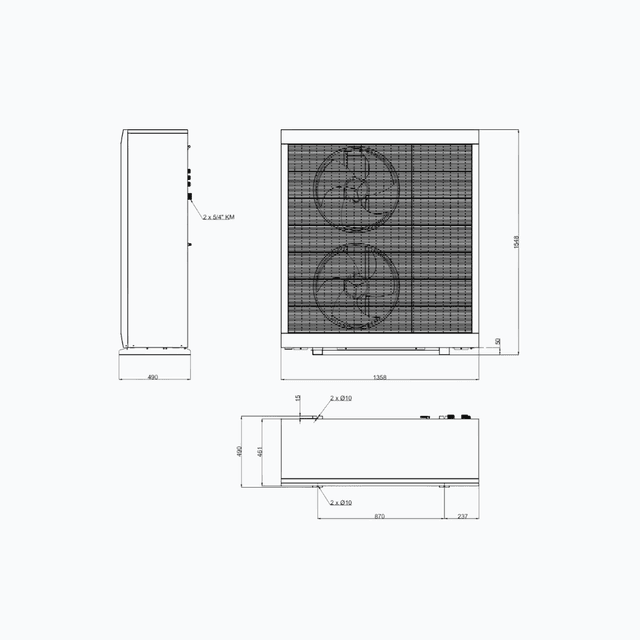

Trident Titan Pro 20M-HB - Outdoor unit technical drawing
Trident Titan Pro 20M-HB - Energy label
  • Up to 10 years full warranty
  • Free remote monitoring service
  • 3 years of free maintenance

Trident Titan Pro 20M-HB

SKU: TT-AW-0020-HB-01-33-01

Price on request

With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.

Key features

Heating capacity:20.3 kW
Cooling capacity:20.1 kW
Power supply:380 V
Refrigerant:R290
SCOP:5.0
Request a quoteDownload datasheet

Questions about this product?
Get in touch with us.

Specifications

The Trident Titan Pro 20M-HB is a high-output, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production. The HB (Hydro Box) version includes a built-in hydraulic unit, which simplifies system design and offers a transparent, compact mechanical solution for properties with higher heat demand.

High output, reliable operation

The Titan Pro 20M outdoor unit is specifically suited to serving medium-sized and larger family homes, apartment buildings, and smaller commercial or institutional buildings. The system provides stable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function contributes to a comfortable indoor climate.

HB (Hydro Box) – integrated hydraulics, faster installation

The HB version features a separate hydraulic unit that contains the most important system components. This:

  • reduces installation time and the risk of installation errors,

  • allows a clearer plant-room layout,

  • makes maintenance and servicing simpler.

The Hydro Box is an ideal solution when the system is built with an external DHW tank, a buffer tank or multiple heating circuits.

Energy-efficient, environmentally friendly technology

The inverter-driven operation of the Trident Titan Pro 20M-HB adapts output to the current heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, which ensures a low environmental impact while offering high efficiency and reliable long-term operation.

Versatile applications

With appropriate system design, the Titan Pro 20M-HB is an excellent choice for:

  • underfloor heating systems,

  • fan coil-based cooling,

  • low- and medium-temperature radiator heating,

  • systems combined with an external DHW tank and a buffer tank.

Who is it recommended for?

The Trident Titan Pro 20M-HB is an ideal choice for those who:

  • are looking for a higher-output, stable heat pump system,

  • want to simplify their mechanical installation with an integrated hydraulic unit,

  • are planning the heating and cooling solution for a family home, apartment building or smaller business property.

The HB version is especially advantageous when fast installation, a transparent system architecture and a reliable, installer-friendly solution for the long term are priorities.
