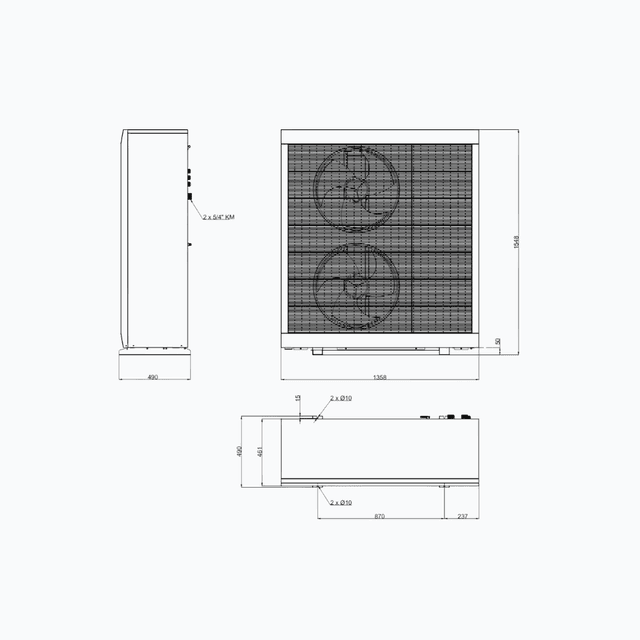

Outdoor unit
Gallery
Gallery
Energy label
- Up to 10 years full warranty
- Free remote monitoring service
- 3 years of free maintenance
Up to
10 years
full warranty.
Free
remote monitoring
service.
3 years
of free maintenance.
Trident Titan Pro 15M-HB
SKU: TT-AW-0015-HB-01-33-01
€8,620 excl. VAT
With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.
Key features
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 15M-HB is a state-of-the-art, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production. The HB (Hydro Box) version features a built-in hydraulic unit, which simplifies system design and offers a transparent, compact mechanical solution for properties with medium heat demand.
Stable performance for family homes
The output of the Titan Pro 15M outdoor unit is ideally matched to the needs of medium-sized, well-insulated modern family homes, smaller apartment buildings or office-type buildings. The system delivers reliable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function ensures year-round comfort.
HB (Hydro Box) – integrated hydraulics, transparent plant room
The HB version includes a separate hydraulic unit that incorporates the most important hydraulic components. Its advantages include:
-
faster and simpler installation,
-
less on-site assembly work,
-
a clearer plant-room layout,
-
easier maintenance and serviceability.
The Hydro Box is an ideal solution when the system is built with an external DHW tank, a buffer tank or multiple heating circuits.
Energy-efficient, environmentally friendly operation
The inverter technology of the Trident Titan Pro 15M-HB adapts operation to the current heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, offering an environmentally friendly solution with high efficiency and reliable long-term operation.
Versatile applications
With appropriate system design, the Titan Pro 15M-HB is an excellent choice for:
-
underfloor heating systems,
-
fan coil-based cooling,
-
low- and medium-temperature radiator heating,
-
systems combined with an external DHW tank and a buffer tank.
Who is it recommended for?
The Trident Titan Pro 15M-HB is an ideal choice for those who:
-
are looking for a modern, energy-saving heat pump system,
-
want to simplify their mechanical installation with an integrated hydraulic unit,
-
are planning the heating and cooling solution for a family home or a smaller apartment building.
The HB version is especially advantageous when fast installation, a transparent system architecture and a reliable, installer-friendly solution for the long term are priorities.
Basic data
| Model | Trident Titan Pro 15M - monobloc outdoor unit |
|---|---|
| Article number | TT-SU-0015-MB-01-33-01 |
Key features
| Heat pump energy efficiency class - W35°C / W55°C | A+++ / A+++ |
|---|---|
| SCOP - 35°C / 55°C | 5.35 / 4.00 |
| SEER - 18°C / 7°C | 7.00 / 4.59 |
| Annual energy consumption - heating (35°C/55°C) | 5082 kWh / 6360 kWh |
| Rated heat output (Prated) (35°C/55°C) | 13.10 kW / 12.40 kW |
| Maximum heat output (35°C/55°C) | 15.90 kW / 15.10 kW |
| Seasonal space heating efficiency (ηs) (35°C/55°C) | 211 % / 158 % |
Heat outputs
| Heating capacity A7/W35 (min/max) | 4.30 kW / 15.20 kW |
|---|---|
| Heating capacity A2/W35 (min/max) | 7.33 kW / 13.95 kW |
| Heating capacity A-7/W35 (min/max) | 5.96 kW / 14.50 kW |
| Cooling capacity A35/W18 (min/max) | 7.82 kW / 15.25 kW |
| Cooling capacity A35/W7 (min/max) | 5.21 kW / 12.08 kW |
| Heating capacity (A7/W35) | 15.20 kW |
| Electrical power input (A7/W35) | 3.52 kW |
| COP (A7/W35) | 4.32 |
| Heating capacity (A7/W55) | 14.70 kW |
| Electrical power input (A7/W55) | 4.27 kW |
| COP (A7/W55) | 3.45 |
| Heating capacity (A2/W35) | 13.95 kW |
| Electrical power input (A2/W35) | 3.84 kW |
| COP (A2/W35) | 3.63 |
| Heating capacity (A2/W55) | 13.44 kW |
| Electrical power input (A2/W55) | 5.17 kW |
| COP (A2/W55) | 2.60 |
| Heating capacity (A-7/W35) | 14.50 kW |
| Electrical power input (A-7/W35) | 5.09 kW |
| COP (A-7/W35) | 2.85 |
| Heating capacity (A-7/W55) | 13.10 kW |
| Electrical power input (A-7/W55) | 6.68 kW |
| COP (A-7/W55) | 1.96 |
| Heating capacity (A-15/W35) | 12.97 kW |
| Electrical power input (A-15/W35) | 5.28 kW |
| COP (A-15/W35) | 2.46 |
| Heating capacity (A-15/W55) | 10.24 kW |
| Electrical power input (A-15/W55) | 6.99 kW |
| COP (A-15/W55) | 1.46 |
| Cooling capacity (A35/W18) | 15.25 kW |
| Electrical power input (A35/W18) | 4.12 kW |
| EER (A35/W18) | 3.70 |
| Cooling capacity (A35/W7) | 12.08 kW |
| Electrical power input (A35/W7) | 3.79 kW |
| EER (A35/W7) | 3.19 |
| Max. heating capacity in quiet mode (A-7/W35) | 10.81 kW |
| Max. heating capacity in quiet mode (A-7/W55) | 10.51 kW |
| Max. cooling capacity in quiet mode (A35/W18) | 12.95 kW |
| Max. cooling capacity in quiet mode (A35/W7) | 9.90 kW |
At operating points with an outdoor temperature of 2 °C or below (A2, A-7, A-15), the heating data is given without the defrost cycle included.
Performance data
| Refrigerant | R290 |
|---|---|
| Refrigerant charge | 1.80 kg |
| Compressor type | Twin rotary |
| Compressor manufacturer | Hitachi |
| Compressor oil | POE |
Electrical data
| Rated voltage of outdoor unit | 400 V |
|---|---|
| Recommended fuse for outdoor unit | 3 x B 20 A |
Hydraulic data
| Heat exchanger type | Plate heat exchanger |
|---|---|
| Heat exchanger manufacturer | Alfa Laval |
| Water-side pipe connection | G5/4" male thread |
| Nominal flow rate | 2.60 m³/h |
| Min. / max. flow rate | 1.80 / 3.35 m³/h |
| Internal pressure drop at nominal flow rate | 25 kPa |
| Circulation pump manufacturer | Grundfos |
| Circulation pump type | UPMXL 25-125 130 PWM |
Heat source data
| Number of fans | 2 |
|---|---|
| Fan air flow rate | 6300 m³/h |
Operating limits
| Outdoor temperature operating range | −25 / 43 °C |
|---|---|
| Heating water temperature (min/max) | 25 / 75 °C |
| Cooling water temperature (min/max) | 7 / 20 °C |
| Min. / max. operating pressure | 0.8 / 3 bar |
Weight data
| Weight | 215 kg |
|---|
Dimensions
| Width | 1260 mm |
|---|---|
| Depth | 420 mm |
| Height | 1550 mm |
Noise level
| Sound power level (EN 12102) | 55 dB(A) |
|---|---|
| Max. sound power level at operating limits | 72 dB(A) |
| Max. sound power level in reduced night mode | 48 dB(A) |
