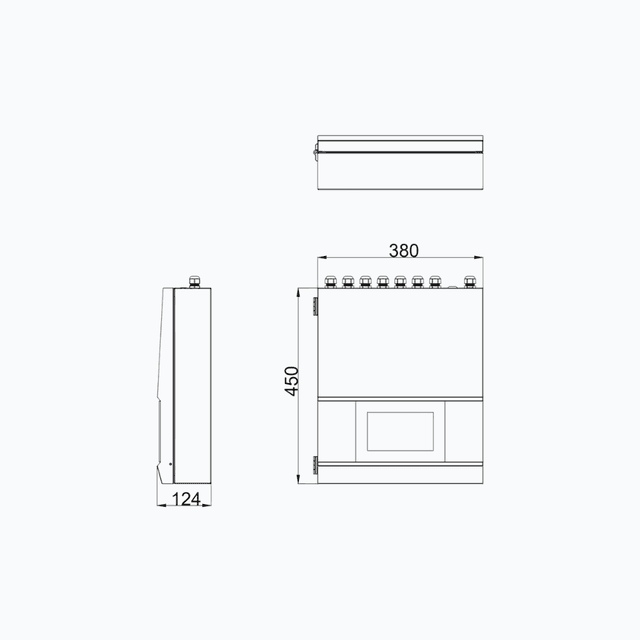

Indoor unit

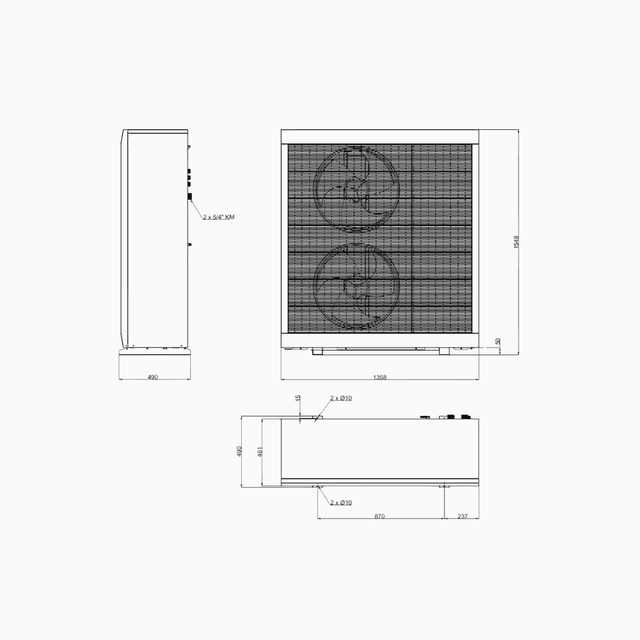

Outdoor unit
Gallery
Gallery
Energy label
- Up to 10 years full warranty
- Free remote monitoring service
- 3 years of free maintenance
Up to
10 years
full warranty.
Free
remote monitoring
service.
3 years
of free maintenance.
Trident Titan Pro 15M-CB
SKU: TT-AW-0015-CB-01-33-01
€7,800 excl. VAT
With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.
Key features
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 15M-CB is a state-of-the-art, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production, complemented by a separate control unit (CB – Control Box). This configuration allows more flexible system planning, especially where the mechanical installation is tailored to individual requirements.
Reliable performance for medium heat demand
The output of the Titan Pro 15M outdoor unit is ideally matched to medium-sized, well-insulated modern family homes, smaller apartment buildings, or office and commercial properties. The system delivers stable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function ensures a comfortable indoor climate.

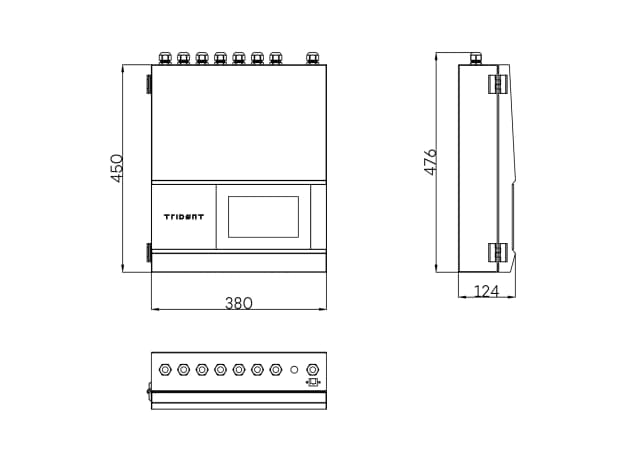

CB (Control Box) – flexible control, installer-friendly solution
In the CB version, the heat pump's controls are housed in a separate, wall-mounted control unit. Its advantages include:
-
optimal positioning of the controls within the plant room,
-
simpler maintenance and serviceability,
-
easier integration with an external buffer tank, a separate DHW tank or multiple heating circuits.
This solution is ideal when domestic hot water is not produced with an integrated tank, or when the system calls for a modular, expandable configuration.
Energy-efficient, environmentally friendly operation
The inverter technology of the Trident Titan Pro 15M-CB adapts operation to the instantaneous heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, offering an environmentally friendly solution with high efficiency and reliable operation.
Versatile use
With appropriate system design, the Titan Pro 15M-CB is an excellent choice for:
-
underfloor heating systems,
-
fan coil-based cooling,
-
low- and medium-temperature radiator heating,
-
systems combined with an external DHW tank.
Who is it recommended for?
The Trident Titan Pro 15M-CB is an ideal choice for those who:
-
are looking for a flexibly configurable, state-of-the-art heat pump system,
-
want to build their mechanical installation around a separate control unit,
-
operate a family home, apartment building or smaller business property with medium heat demand.
The CB version is especially advantageous when a transparent system architecture, support for bespoke mechanical solutions and a configuration that remains easy to service over the long term are priorities.
Basic data
| Model | Trident Titan Pro 15M - monobloc outdoor unit |
|---|---|
| Article number | TT-SU-0015-MB-01-33-01 |
Key features
| Heat pump energy efficiency class - W35°C / W55°C | A+++ / A+++ |
|---|---|
| SCOP - 35°C / 55°C | 5.35 / 4.00 |
| SEER - 18°C / 7°C | 7.00 / 4.59 |
| Annual energy consumption - heating (35°C/55°C) | 5082 kWh / 6360 kWh |
| Rated heat output (Prated) (35°C/55°C) | 13.10 kW / 12.40 kW |
| Maximum heat output (35°C/55°C) | 15.90 kW / 15.10 kW |
| Seasonal space heating efficiency (ηs) (35°C/55°C) | 211 % / 158 % |
Heat outputs
| Heating capacity A7/W35 (min/max) | 4.30 kW / 15.20 kW |
|---|---|
| Heating capacity A2/W35 (min/max) | 7.33 kW / 13.95 kW |
| Heating capacity A-7/W35 (min/max) | 5.96 kW / 14.50 kW |
| Cooling capacity A35/W18 (min/max) | 7.82 kW / 15.25 kW |
| Cooling capacity A35/W7 (min/max) | 5.21 kW / 12.08 kW |
| Heating capacity (A7/W35) | 15.20 kW |
| Electrical power input (A7/W35) | 3.52 kW |
| COP (A7/W35) | 4.32 |
| Heating capacity (A7/W55) | 14.70 kW |
| Electrical power input (A7/W55) | 4.27 kW |
| COP (A7/W55) | 3.45 |
| Heating capacity (A2/W35) | 13.95 kW |
| Electrical power input (A2/W35) | 3.84 kW |
| COP (A2/W35) | 3.63 |
| Heating capacity (A2/W55) | 13.44 kW |
| Electrical power input (A2/W55) | 5.17 kW |
| COP (A2/W55) | 2.60 |
| Heating capacity (A-7/W35) | 14.50 kW |
| Electrical power input (A-7/W35) | 5.09 kW |
| COP (A-7/W35) | 2.85 |
| Heating capacity (A-7/W55) | 13.10 kW |
| Electrical power input (A-7/W55) | 6.68 kW |
| COP (A-7/W55) | 1.96 |
| Heating capacity (A-15/W35) | 12.97 kW |
| Electrical power input (A-15/W35) | 5.28 kW |
| COP (A-15/W35) | 2.46 |
| Heating capacity (A-15/W55) | 10.24 kW |
| Electrical power input (A-15/W55) | 6.99 kW |
| COP (A-15/W55) | 1.46 |
| Cooling capacity (A35/W18) | 15.25 kW |
| Electrical power input (A35/W18) | 4.12 kW |
| EER (A35/W18) | 3.70 |
| Cooling capacity (A35/W7) | 12.08 kW |
| Electrical power input (A35/W7) | 3.79 kW |
| EER (A35/W7) | 3.19 |
| Max. heating capacity in quiet mode (A-7/W35) | 10.81 kW |
| Max. heating capacity in quiet mode (A-7/W55) | 10.51 kW |
| Max. cooling capacity in quiet mode (A35/W18) | 12.95 kW |
| Max. cooling capacity in quiet mode (A35/W7) | 9.90 kW |
At operating points with an outdoor temperature of 2 °C or below (A2, A-7, A-15), the heating data is given without the defrost cycle included.
Performance data
| Refrigerant | R290 |
|---|---|
| Refrigerant charge | 1.80 kg |
| Compressor type | Twin rotary |
| Compressor manufacturer | Hitachi |
| Compressor oil | POE |
Electrical data
| Rated voltage of outdoor unit | 400 V |
|---|---|
| Recommended fuse for outdoor unit | 3 x B 20 A |
Hydraulic data
| Heat exchanger type | Plate heat exchanger |
|---|---|
| Heat exchanger manufacturer | Alfa Laval |
| Water-side pipe connection | G5/4" male thread |
| Nominal flow rate | 2.60 m³/h |
| Min. / max. flow rate | 1.80 / 3.35 m³/h |
| Internal pressure drop at nominal flow rate | 25 kPa |
| Circulation pump manufacturer | Grundfos |
| Circulation pump type | UPMXL 25-125 130 PWM |
Heat source data
| Number of fans | 2 |
|---|---|
| Fan air flow rate | 6300 m³/h |
Operating limits
| Outdoor temperature operating range | −25 / 43 °C |
|---|---|
| Heating water temperature (min/max) | 25 / 75 °C |
| Cooling water temperature (min/max) | 7 / 20 °C |
| Min. / max. operating pressure | 0.8 / 3 bar |
Weight data
| Weight | 215 kg |
|---|

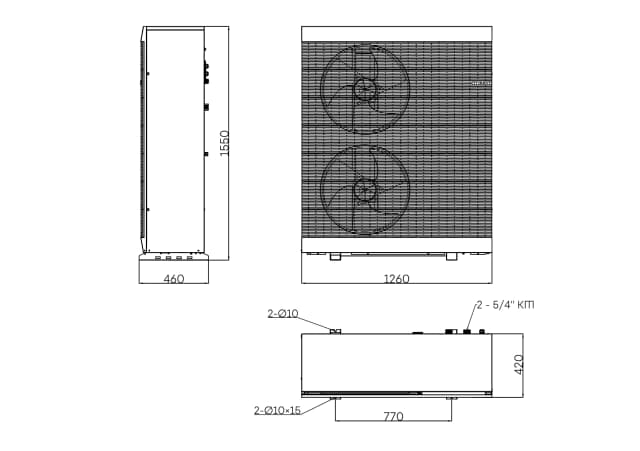

Dimensions
| Width | 1260 mm |
|---|---|
| Depth | 420 mm |
| Height | 1550 mm |
Noise level
| Sound power level (EN 12102) | 55 dB(A) |
|---|---|
| Max. sound power level at operating limits | 72 dB(A) |
| Max. sound power level in reduced night mode | 48 dB(A) |
