Trident Titan Pro 12M-HB
SKU: TT-AW-0012-HB-01-33-01
€7,300 excl. VAT
With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.
Key features
Heating capacity (A7/W35):12.50 kW
Cooling capacity (A35/W18):12.18 kW
Power supply:400 V
Refrigerant:R290
SCOP (35 °C):5.48
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 12M HB is a modern, inverter-driven air-to-water heat pump that offers an efficient solution
for heating, cooling and domestic hot water (DHW) production. Its design is ideal for family homes and smaller properties where energy-saving operation and long-term reliability matter.
Efficient heating and cooling all year round
The unit's output is well matched to medium-sized, well-insulated modern buildings. It delivers stable heating output even at low outdoor temperatures, while in summer mode it offers a cooling function that supports pleasant indoor comfort.Energy-saving, environmentally friendly operation
- Inverter technology for operation adapted to the current heat demand
- Lower energy consumption and running costs
- R290 refrigerant for a modern, sustainable system
- Flow temperatures of up to 75 °C
- Wide operating range in both winter and summer conditions
HB (Hydro Box) version
The HB version features a built-in hydraulic unit that simplifies system design and installation. The integrated solution allows a clearer plant-room layout and fits well into new builds as well as properties undergoing renovation.Who is it recommended for?
The Trident Titan Pro 12M HB is an ideal choice for anyone looking for a modern, energy-saving heat pump system for heating, cooling and hot water production. With appropriate system design, it works equally well with underfloor heating and radiator systems.Basic data
| Model | Trident Titan Pro 12M - monobloc outdoor unit |
|---|---|
| Article number | TT-SU-0012-MB-01-33-01 |
Key features
| Heat pump energy efficiency class - W35°C / W55°C | A+++ / A+++ |
|---|---|
| SCOP - 35°C / 55°C | 5.48 / 4.12 |
| SEER - 18°C / 7°C | 7.62 / 4.66 |
| Annual energy consumption - heating (35°C/55°C) | 3706 kWh / 4812 kWh |
| Rated heat output (Prated) (35°C/55°C) | 9.83 kW / 9.60 kW |
| Maximum heat output (35°C/55°C) | 12.51 kW / 11.92 kW |
| Seasonal space heating efficiency (ηs) (35°C/55°C) | 216 % / 162 % |
Heat outputs
| Heating capacity A7/W35 (min/max) | 3.55 kW / 12.50 kW |
|---|---|
| Heating capacity A2/W35 (min/max) | 4.89 kW / 11.78 kW |
| Heating capacity A-7/W35 (min/max) | 4.01 kW / 10.82 kW |
| Cooling capacity A35/W18 (min/max) | 4.81 kW / 12.18 kW |
| Cooling capacity A35/W7 (min/max) | 3.30 kW / 9.21 kW |
| Heating capacity (A7/W35) | 12.50 kW |
| Electrical power input (A7/W35) | 2.61 kW |
| COP (A7/W35) | 4.81 |
| Heating capacity (A7/W55) | 12.05 kW |
| Electrical power input (A7/W55) | 3.10 kW |
| COP (A7/W55) | 3.84 |
| Heating capacity (A2/W35) | 11.78 kW |
| Electrical power input (A2/W35) | 2.86 kW |
| COP (A2/W35) | 4.11 |
| Heating capacity (A2/W55) | 10.78 kW |
| Electrical power input (A2/W55) | 3.81 kW |
| COP (A2/W55) | 2.82 |
| Heating capacity (A-7/W35) | 10.80 kW |
| Electrical power input (A-7/W35) | 3.24 kW |
| COP (A-7/W35) | 3.22 |
| Heating capacity (A-7/W55) | 10.31 kW |
| Electrical power input (A-7/W55) | 4.22 kW |
| COP (A-7/W55) | 2.44 |
| Heating capacity (A-15/W35) | 9.94 kW |
| Electrical power input (A-15/W35) | 3.53 kW |
| COP (A-15/W35) | 2.82 |
| Heating capacity (A-15/W55) | 9.07 kW |
| Electrical power input (A-15/W55) | 4.17 kW |
| COP (A-15/W55) | 2.18 |
| Cooling capacity (A35/W18) | 12.18 kW |
| Electrical power input (A35/W18) | 2.95 kW |
| EER (A35/W18) | 4.12 |
| Cooling capacity (A35/W7) | 9.21 kW |
| Electrical power input (A35/W7) | 2.78 kW |
| EER (A35/W7) | 3.32 |
| Max. heating capacity in quiet mode (A-7/W35) | 8.46 kW |
| Max. heating capacity in quiet mode (A-7/W55) | 7.86 kW |
| Max. cooling capacity in quiet mode (A35/W18) | 11.23 kW |
| Max. cooling capacity in quiet mode (A35/W7) | 8.47 kW |
At operating points with an outdoor temperature of 2 °C or below (A2, A-7, A-15), the heating data is given without the defrost cycle included.
Performance data
| Refrigerant | R290 |
|---|---|
| Refrigerant charge | 1.20 kg |
| Compressor type | Twin rotary |
| Compressor manufacturer | Hitachi |
| Compressor oil | POE |
Electrical data
| Rated voltage of outdoor unit | 400 V |
|---|---|
| Recommended fuse for outdoor unit | 3 x B 16 A |
Hydraulic data
| Heat exchanger type | Plate heat exchanger |
|---|---|
| Heat exchanger manufacturer | Alfa Laval |
| Water-side pipe connection | G1" male thread |
| Nominal flow rate | 2.05 m³/h |
| Min. / max. flow rate | 1.44 / 2.70 m³/h |
| Internal pressure drop at nominal flow rate | 23 kPa |
| Circulation pump manufacturer | Grundfos |
| Circulation pump type | UPM4XL K 25-90 130 |
Heat source data
| Number of fans | 1 |
|---|---|
| Fan air flow rate | 5000 m³/h |
Operating limits
| Outdoor temperature operating range | −25 / 43 °C |
|---|---|
| Heating water temperature (min/max) | 25 / 75 °C |
| Cooling water temperature (min/max) | 7 / 20 °C |
| Min. / max. operating pressure | 0.8 / 3 bar |
Weight data
| Weight | 155 kg |
|---|

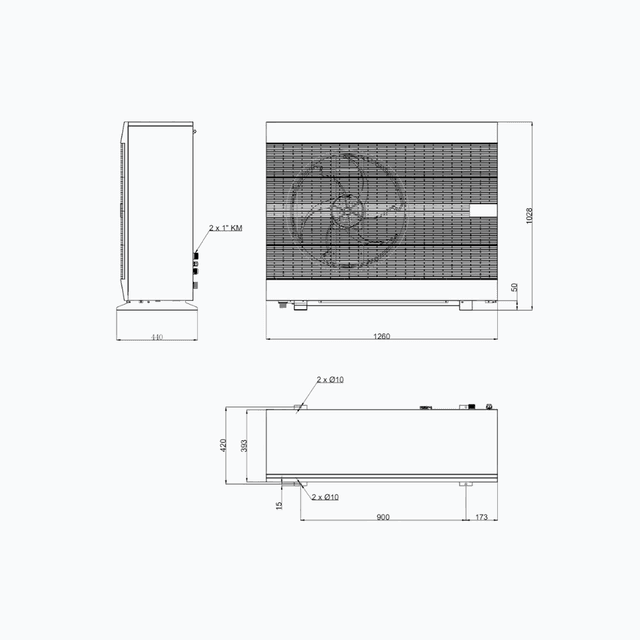

Dimensions
| Width | 1260 mm |
|---|---|
| Depth | 395 mm |
| Height | 1028 mm |
Noise level
| Sound power level (EN 12102) | 50 dB(A) |
|---|---|
| Max. sound power level at operating limits | 70 dB(A) |
| Max. sound power level in reduced night mode | 45 dB(A) |
