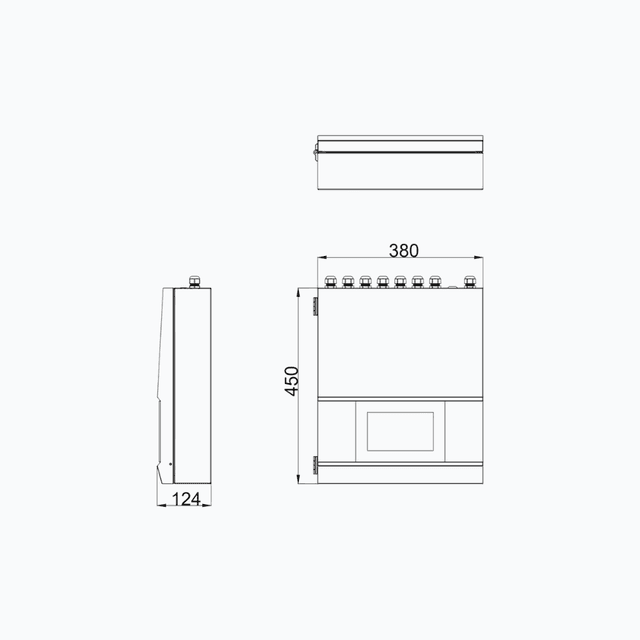

Indoor unit

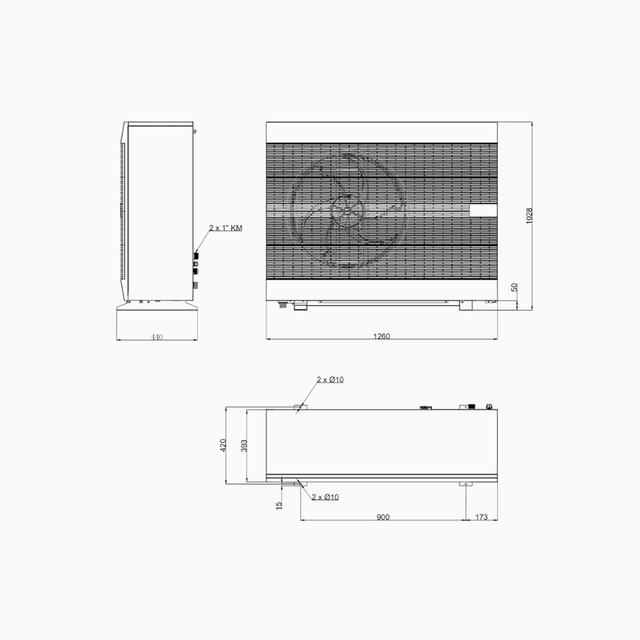

Outdoor unit
Gallery
Gallery

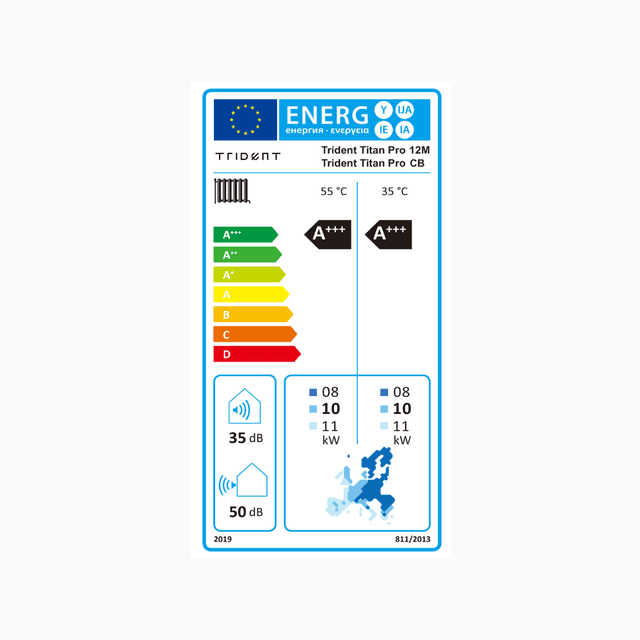

Energy label
- Up to 10 years full warranty
- Free remote monitoring service
- 3 years of free maintenance
Up to
10 years
full warranty.
Free
remote monitoring
service.
3 years
of free maintenance.
Trident Titan Pro 12M-CB
SKU: TT-AW-0012-CB-01-33-01
€6,480 excl. VAT
With its outstandingly high SCOP value, the Trident Titan Pro series delivers excellent energy efficiency along with stable, reliable heating and cooling performance. The unit can produce flow temperatures of up to 75 °C and operates at full heat pump capacity down to an outdoor temperature of −7 °C.
Key features
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 12M-CB is a state-of-the-art, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production, complemented by a separate control unit (CB – Control Box). This configuration allows flexible system planning and is an ideal choice wherever the mechanical installation is tailored to individual requirements.
Reliable performance for family homes
The output of the Titan Pro 12M outdoor unit is well matched to the heating and cooling needs of smaller and medium-sized, well-insulated modern family homes. The system provides stable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function contributes to year-round comfort.

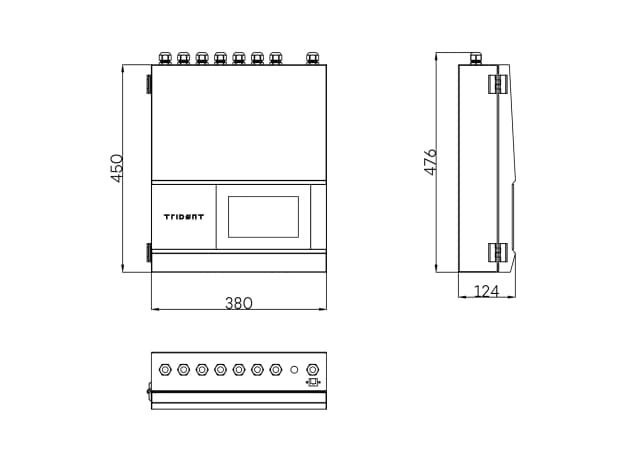

CB (Control Box) – flexible control and simpler installation
In the CB version, the heat pump's controls are housed in a separate, wall-mounted control unit. This makes it possible to:
-
position the controller optimally within the plant room,
-
achieve a clearer system layout,
-
simplify maintenance and servicing,
-
easily connect an external buffer tank and a separate DHW tank.
The CB solution is particularly advantageous in systems where domestic hot water is not produced with an integrated tank, or where multiple heating circuits and zone control are required.
Energy-efficient, environmentally friendly operation
The inverter technology of the Trident Titan Pro 12M-CB adapts operation to the instantaneous heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, offering an environmentally friendly solution with high efficiency and reliable long-term operation.
Versatile applications
With appropriate system design, the Titan Pro 12M-CB is an excellent choice for:
-
underfloor heating systems,
-
fan coil-based cooling,
-
low- and medium-temperature radiator heating,
-
systems combined with an external DHW tank.
Who is it recommended for?
The Trident Titan Pro 12M-CB is an ideal choice for those who:
-
are looking for a modern, energy-saving heat pump system,
-
want a flexibly configurable solution with a separate control unit,
-
wish to cover the heating, cooling and DHW needs of a family home or a smaller apartment building.
The CB version is especially recommended when a bespoke mechanical layout, a transparent system architecture and a solution that remains easy to service over the long term are priorities.
Basic data
| Model | Trident Titan Pro 12M - monobloc outdoor unit |
|---|---|
| Article number | TT-SU-0012-MB-01-33-01 |
Key features
| Heat pump energy efficiency class - W35°C / W55°C | A+++ / A+++ |
|---|---|
| SCOP - 35°C / 55°C | 5.48 / 4.12 |
| SEER - 18°C / 7°C | 7.62 / 4.66 |
| Annual energy consumption - heating (35°C/55°C) | 3706 kWh / 4812 kWh |
| Rated heat output (Prated) (35°C/55°C) | 9.83 kW / 9.60 kW |
| Maximum heat output (35°C/55°C) | 12.51 kW / 11.92 kW |
| Seasonal space heating efficiency (ηs) (35°C/55°C) | 216 % / 162 % |
Heat outputs
| Heating capacity A7/W35 (min/max) | 3.55 kW / 12.50 kW |
|---|---|
| Heating capacity A2/W35 (min/max) | 4.89 kW / 11.78 kW |
| Heating capacity A-7/W35 (min/max) | 4.01 kW / 10.82 kW |
| Cooling capacity A35/W18 (min/max) | 4.81 kW / 12.18 kW |
| Cooling capacity A35/W7 (min/max) | 3.30 kW / 9.21 kW |
| Heating capacity (A7/W35) | 12.50 kW |
| Electrical power input (A7/W35) | 2.61 kW |
| COP (A7/W35) | 4.81 |
| Heating capacity (A7/W55) | 12.05 kW |
| Electrical power input (A7/W55) | 3.10 kW |
| COP (A7/W55) | 3.84 |
| Heating capacity (A2/W35) | 11.78 kW |
| Electrical power input (A2/W35) | 2.86 kW |
| COP (A2/W35) | 4.11 |
| Heating capacity (A2/W55) | 10.78 kW |
| Electrical power input (A2/W55) | 3.81 kW |
| COP (A2/W55) | 2.82 |
| Heating capacity (A-7/W35) | 10.80 kW |
| Electrical power input (A-7/W35) | 3.24 kW |
| COP (A-7/W35) | 3.22 |
| Heating capacity (A-7/W55) | 10.31 kW |
| Electrical power input (A-7/W55) | 4.22 kW |
| COP (A-7/W55) | 2.44 |
| Heating capacity (A-15/W35) | 9.94 kW |
| Electrical power input (A-15/W35) | 3.53 kW |
| COP (A-15/W35) | 2.82 |
| Heating capacity (A-15/W55) | 9.07 kW |
| Electrical power input (A-15/W55) | 4.17 kW |
| COP (A-15/W55) | 2.18 |
| Cooling capacity (A35/W18) | 12.18 kW |
| Electrical power input (A35/W18) | 2.95 kW |
| EER (A35/W18) | 4.12 |
| Cooling capacity (A35/W7) | 9.21 kW |
| Electrical power input (A35/W7) | 2.78 kW |
| EER (A35/W7) | 3.32 |
| Max. heating capacity in quiet mode (A-7/W35) | 8.46 kW |
| Max. heating capacity in quiet mode (A-7/W55) | 7.86 kW |
| Max. cooling capacity in quiet mode (A35/W18) | 11.23 kW |
| Max. cooling capacity in quiet mode (A35/W7) | 8.47 kW |
At operating points with an outdoor temperature of 2 °C or below (A2, A-7, A-15), the heating data is given without the defrost cycle included.
Performance data
| Refrigerant | R290 |
|---|---|
| Refrigerant charge | 1.20 kg |
| Compressor type | Twin rotary |
| Compressor manufacturer | Hitachi |
| Compressor oil | POE |
Electrical data
| Rated voltage of outdoor unit | 400 V |
|---|---|
| Recommended fuse for outdoor unit | 3 x B 16 A |
Hydraulic data
| Heat exchanger type | Plate heat exchanger |
|---|---|
| Heat exchanger manufacturer | Alfa Laval |
| Water-side pipe connection | G1" male thread |
| Nominal flow rate | 2.05 m³/h |
| Min. / max. flow rate | 1.44 / 2.70 m³/h |
| Internal pressure drop at nominal flow rate | 23 kPa |
| Circulation pump manufacturer | Grundfos |
| Circulation pump type | UPM4XL K 25-90 130 |
Heat source data
| Number of fans | 1 |
|---|---|
| Fan air flow rate | 5000 m³/h |
Operating limits
| Outdoor temperature operating range | −25 / 43 °C |
|---|---|
| Heating water temperature (min/max) | 25 / 75 °C |
| Cooling water temperature (min/max) | 7 / 20 °C |
| Min. / max. operating pressure | 0.8 / 3 bar |
Weight data
| Weight | 155 kg |
|---|

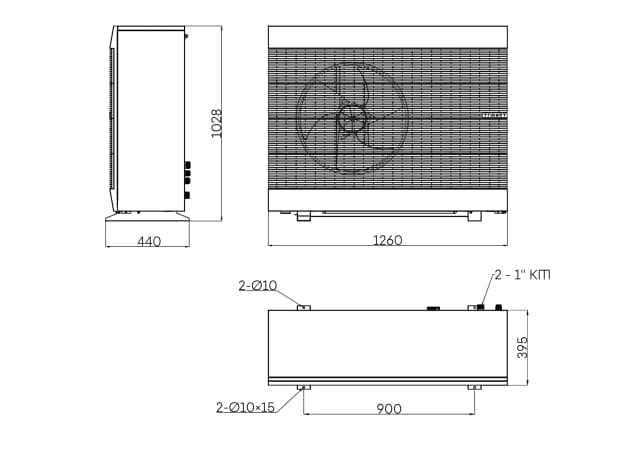

Dimensions
| Width | 1260 mm |
|---|---|
| Depth | 395 mm |
| Height | 1028 mm |
Noise level
| Sound power level (EN 12102) | 50 dB(A) |
|---|---|
| Max. sound power level at operating limits | 70 dB(A) |
| Max. sound power level in reduced night mode | 45 dB(A) |
