Trident Titan Pro 08M‑TIO
Indoor unit
Outdoor unit

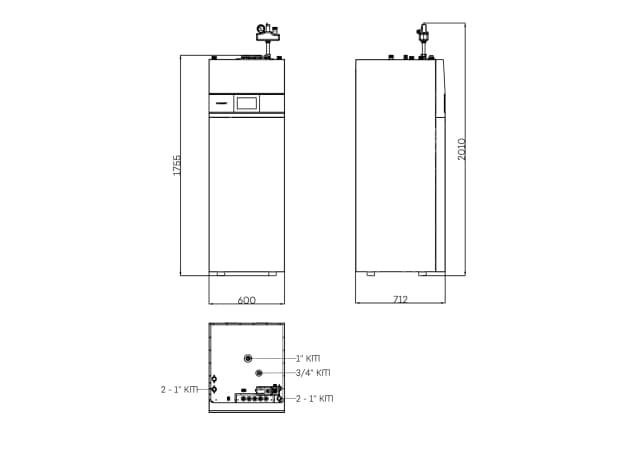

Indoor unit technical drawing

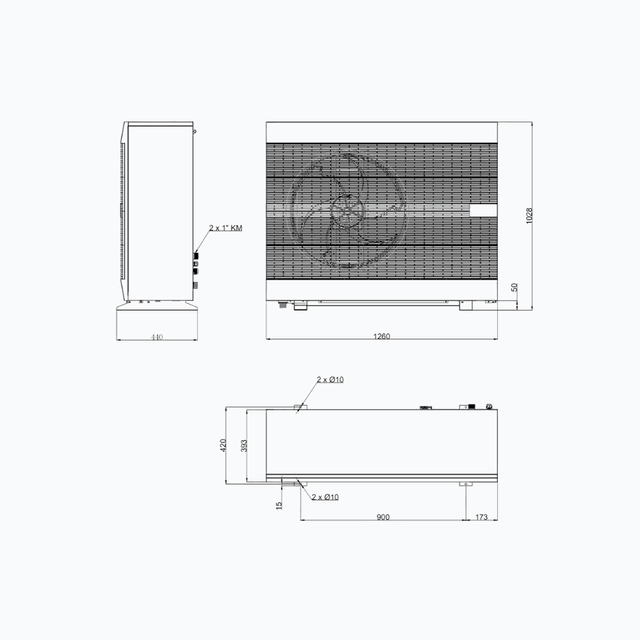

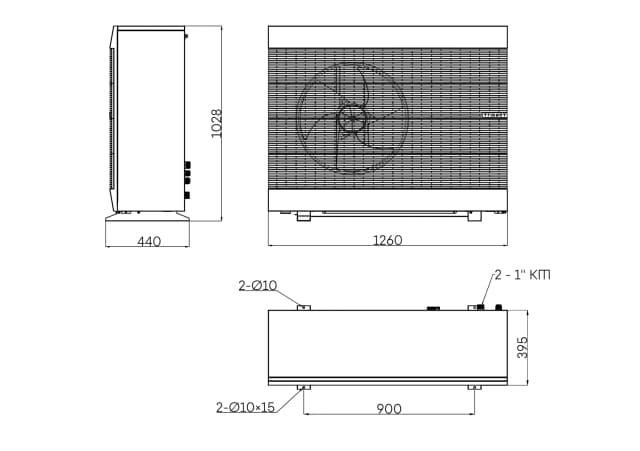

Outdoor unit technical drawing
Energy label
- Up to 10 years full warranty
- Free remote monitoring service
- 3 years of free maintenance
Up to
10 years
full warranty.
Free
remote monitoring
service.
3 years
of free maintenance.
Trident Titan Pro 08M-TIO
SKU: TT-SU-0000-TO-01-01-01
Price on request
With its outstandingly high SCOP value, the Trident Titan Pro series offers best-in-class energy efficiency along with stable, reliable heating and cooling performance. The Titan Pro heat pump can reach flow temperatures of up to 75 °C, and the unit delivers full heat pump capacity down to −7 °C.
Key features
Choose indoor unit configuration
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 08M-TIO is a compact, inverter-driven air-to-water heat pump system that offers a modern, energy-saving solution for heating, cooling and domestic hot water (DHW) production. Thanks to the TIO (All-in-One) design, the system features an integrated DHW tank, so there is no need for a separate hot water tank or a complicated mechanical setup.
An ideal choice for smaller family homes
The output of the Titan Pro 08M is particularly well matched to the needs of smaller, well-insulated modern family homes, terraced houses and holiday homes with lower heat demand. The system provides stable heating output even at low outdoor temperatures, while in summer mode its efficient cooling function contributes to a comfortable indoor climate.
Integrated DHW tank – space-saving and practical
The TIO unit features a built-in 200-litre domestic hot water tank and a 50-litre buffer tank, which provides sufficient hot water capacity for an average household. The integrated design significantly reduces the space required for the mechanical installation, simplifies planning and allows faster installation.
Energy-efficient, environmentally friendly operation
The inverter technology adapts operation to the current heat demand, resulting in lower energy consumption and more favourable running costs. The unit uses R290 refrigerant, offering an environmentally friendly solution with high efficiency.
Versatile use
With appropriate system design, the Trident Titan Pro 08M-TIO is an excellent choice for:
-
underfloor heating systems,
-
fan coil-based cooling,
-
low-temperature radiator heating.
Who is it recommended for?
The Trident Titan Pro 08M-TIO is an ideal choice for those who:
-
have a smaller family home or holiday home in mind,
-
want to cover heating, cooling and DHW production with a single, compact system,
-
value energy-saving, modern and environmentally friendly solutions.
The TIO version is especially advantageous in new-build properties and during renovations, where space efficiency and simple installation are key priorities.
Have a technical question?
Our managing director is available on weekdays between 09:00 and 17:00 and will be glad to help with any technical questions.
