Trident Titan Pro 08M‑HB
Indoor unit
Outdoor unit

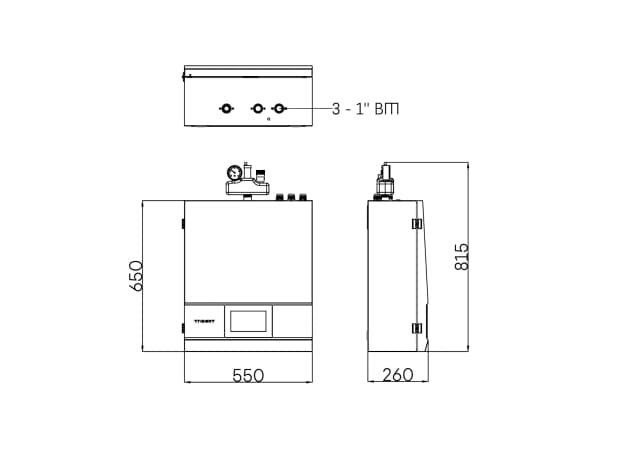

Indoor unit technical drawing

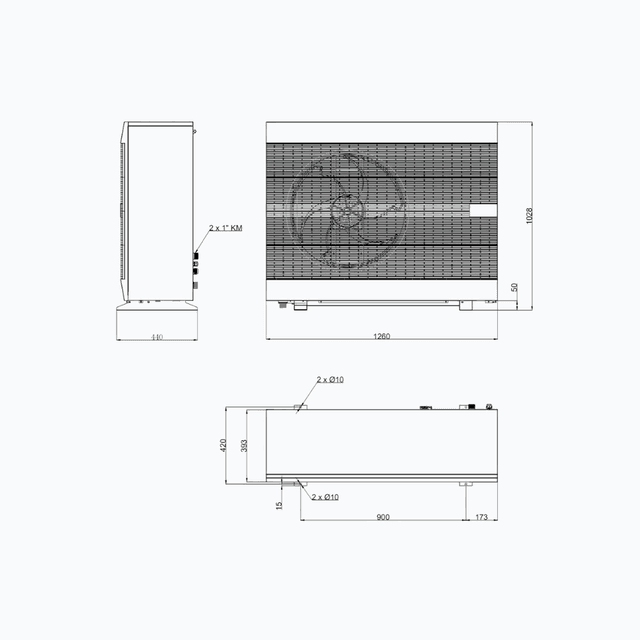

Outdoor unit technical drawing
Energy label
- Up to 10 years full warranty
- Free remote monitoring service
- 3 years of free maintenance
Up to
10 years
full warranty.
Free
remote monitoring
service.
3 years
of free maintenance.
Trident Titan Pro 08M-HB
SKU: TT-AW-0008-HB-01-31-01
Price on request
With its outstandingly high SCOP value, the Trident Titan Pro series offers best-in-class energy efficiency along with stable, reliable heating and cooling performance. The Titan Pro heat pump can reach flow temperatures of up to 75 °C, and the unit delivers full heat pump capacity down to −7 °C.
Key features
Questions about this product?
Get in touch with us.
Specifications
The Trident Titan Pro 08M-HB is a compact, inverter-driven air-to-water heat pump system suitable for heating, cooling and domestic hot water (DHW) production. The HB (Hydro Box) version includes a built-in hydraulic unit, which simplifies system design and offers a transparent, space-saving solution for properties with lower heat demand.
Reliable performance for lower heat demand
The output of the Titan Pro 08M outdoor unit is ideally matched to the heating and cooling needs of smaller and medium-sized, well-insulated modern family homes, terraced houses or holiday homes. The system ensures stable operation even at low outdoor temperatures, while in summer mode its efficient cooling function provides a pleasant indoor climate.
HB (Hydro Box) – integrated hydraulics, simple installation
The HB version includes a separate hydraulic unit that incorporates the most important hydraulic components. This:
-
reduces installation time,
-
minimises the risk of installation errors,
-
provides a clearer plant-room layout,
-
makes maintenance and servicing easier.
The Hydro Box is an ideal solution when the system is built with an external DHW tank, a buffer tank or a simpler multi-circuit heating setup.
Energy-efficient, environmentally friendly operation
The inverter technology of the Trident Titan Pro 08M-HB adapts operation to the current heat demand, reducing energy consumption and running costs. The unit uses R290 refrigerant, which ensures a low environmental impact while delivering high efficiency and reliable operation.
Versatile use
With appropriate system design, the Titan Pro 08M-HB is an excellent choice for:
-
underfloor heating systems,
-
fan coil-based cooling,
-
low-temperature radiator heating,
-
systems combined with an external DHW tank.
Who is it recommended for?
The Trident Titan Pro 08M-HB is an ideal choice for those who:
-
are looking for a heating and cooling solution for a smaller property,
-
want a compact heat pump with an integrated hydraulic unit,
-
value energy-saving, environmentally friendly technology.
The HB version is especially advantageous when fast installation, a transparent system architecture and reliable long-term operation are key priorities.
